DYP-ME007Y TX (Serial output) Ultrasonic Sensor interfacing with Arduino / NodeMCU

There are two main versions of the DYP-ME007Y ultrasonic module (see here to tell the difference) – this article is about interfacing and taking readings from the serial output version.

At the labs, we have been working on interfacing one of these with the NodeMCU – an Arduino-type device with built-in Wifi. This is in order to create a water tank level sensor. The automotive ultrasonic sensor lends itself to this application in that there is no need to add waterproofing – it is already there.

To interface with it we need to convert the 3.3V digital in/outs from the NodeMCU to the 5V required by the DYP-ME007Y. If you were using a 5V Arduino, you wouln’d have to do this. For us, we use a bi-directional logic level converter which is available from eBay. We bought from Electro TV Parts because they stock them in the UK and so shipping is fast.

We are only using two of the four channels on the converter. These are for the two sides of the serial connection between the NodeMCU and the DYP-ME007Y – RX and TX. The converter also needs 5V, 3.3V and GND, which are all available on a pins of the NodeMCU board.

On the NodeMCU, we then need to choose two digital pins for the serial connection, and connect these to the LV (low voltage) side of the converter. The HV side connects to the DYP-ME007Y RX and TX pins. It also needs 5V and GND.

For the serial connection, the pin assigned as TX on the NodeMCU connects (via the converter) to the RX pin on the DYP-ME007Y, and RX on the NodeMCU to TX on the DYP-ME007Y, also via the converter. That’s just how serial works!

Now on to the coding.

We use SoftwareSerial to assign the two digital pins as the TX and RX on the NodeMCU, then we are ready to read the results from the DYP-ME007Y.

#include <SoftwareSerial.h>

// pin assignments. TX on the arduino connects to RX on the sensor, RX to TX.
#define TX_PIN D3
#define RX_PIN D4

SoftwareSerial DYPSensor = SoftwareSerial(RX_PIN, TX_PIN);
const int MAX_TRY_SERIAL = 50; // how many cycles of 10ms to wait for before giving up on the sensor (up to 255)

Here you can see I am using pre-defined constants (D3/D4) for the NodeMCU in the Arduino dev environment. We also define how many times we will try to read the serial before giving up. This allows trapping of the situation were there is nothing coming from the DYP-ME007Y – like if it was not connected.

Now in setup, we start up the serial:

void setup() {

 Serial.begin(19200);
 delay(10);

 DYPSensor.begin(9600);

} // end of setup

We are also starting up the serial connection to the computer it is connected to so we can see debug information.

Our loop looks like this:

void loop() {

 int current_reading;
 current_reading = GetDistance();

 Serial.print(current_reading);
 Serial.println("cm");

 delay(50);
}

..which just calls a subroutine to read the sensor and then prints the result to serial.

GetDistance looks like this:

int GetDistance() {
 byte msb, lsb, checksum, checkcalc, tries = 0;
 int distance;

// we want a 255 which is the start of the reading (not msb but saving a byte of variable storage)..
 while (msb != 255) {
 // wait for serial..
 while ( not DYPSensor.available() && tries < MAX_TRY_SERIAL ) {
 delay(10);
 tries++;
 }
 if (tries == MAX_TRY_SERIAL) {
 Serial.println(" TIMED OUT WAITING FOR SERIAL.");
 return -1;
 }
 msb = DYPSensor.read();
 }

// now we collect MSB, LSB, Checksum..
 while ( not DYPSensor.available() ) {
 delay(10);
 }
 msb = DYPSensor.read();

while ( not DYPSensor.available() ) {
 delay(10);
 }
 lsb = DYPSensor.read();

while ( not DYPSensor.available() ) {
 delay(10);
 }
 checksum = DYPSensor.read();

// is the checksum ok?
 checkcalc = 255 + msb + lsb;

if (checksum == checkcalc) {
 distance = msb * 256 + lsb;
 // Round from mm to cm
 distance += 5;
 distance = distance / 10;

return distance;
 } else {
 Serial.println("bad checksum - ignoring reading.");
 return -1;
 }

} // end of GetDistance()

GetDistance() returns a signed integer of the distance in cm, or -1 if it returned bad data, or the serial read timed out.

It works like this:

  1. Keep reading until we receive a 0xFF which is the start byte.
  2. Now read the most significant byte (msb).
  3. Read the least significant byte (lsb).
  4. Read the checksum.
  5. Calculate the checksum and compare to the one sent from the device.
  6. If checksum matches, it’s a good reading and so return it. If not, return -1.

It makes no attempt to decide whether the sensor has actually sent a meaningful result, just that what we received matched what it sent. More of validating the results in a later article.

Here is the code in full:



/*
 Reads a DYP-ME007Y TX ultrasonic sensor and writes the distance to serial.
 This is the SERIAL VERSION of the sensor
*/

#include <SoftwareSerial.h>

// pin assignments. TX on the Arduino connects to RX on the sensor, RX to TX.
#define TX_PIN D3
#define RX_PIN D4

SoftwareSerial DYPSensor = SoftwareSerial(RX_PIN, TX_PIN);

const int MAX_TRY_SERIAL = 50; // how many cycles of 10ms to wait for before giving up on the sensor (up to 255)

void setup() {

Serial.begin(19200);
 delay(10);

 DYPSensor.begin (9600);

} // end of setup


//
// Reads bytes from RX port and returns a reading in cm

int GetDistance() {
 byte msb, lsb, checksum, checkcalc, tries = 0;
 int distance;

// we want a 255 which is the start of the reading (not msb but saving a byte of variable storage)..
 while (msb != 255) {
 // wait for serial..
 while ( not DYPSensor.available() && tries < MAX_TRY_SERIAL ) {
 delay(10);
 tries++;
 }
 if (tries == MAX_TRY_SERIAL) {
 Serial.println(" TIMED OUT WAITING FOR SERIAL.");
 return -1;
 }
 msb = DYPSensor.read();
 }

// now we collect MSB, LSB, Checksum..
 while ( not DYPSensor.available() ) {
 delay(10);
 }
 msb = DYPSensor.read();

while ( not DYPSensor.available() ) {
 delay(10);
 }
 lsb = DYPSensor.read();

while ( not DYPSensor.available() ) {
 delay(10);
 }
 checksum = DYPSensor.read();

// is the checksum ok?
 checkcalc = 255 + msb + lsb;

if (checksum == checkcalc) {
 distance = msb * 256 + lsb;
 // Round from mm to cm
 distance += 5;
 distance = distance / 10;

return distance;
 } else {
 Serial.println("bad checksum - ignoring reading.");
 return -1;
 }

} // end of GetDistance()



void loop() {

int current_reading;
 current_reading = GetDistance();

Serial.print(current_reading);
 Serial.println("cm");

delay(50);
}

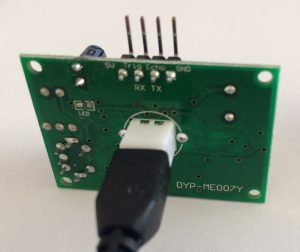

DYP-ME007Y Ultrasonic distance sensor – PWM or Serial?

In order to build a tank level monitoring device, we recently bought a pile of DYP-ME007Y ultrasonic devices. We chose the single sensor version with the automotive sensor used for car parking distance when mounted on the bumper.

Having tried to use both the manual ‘pulse-trigger then measure the response’ and NewPing code, we gave up.

It turns out that there are two (well, actually three) different versions of this module, and it is not that obvious which one is which.

The two versions are Pulse Width Modulation (PWM) and Serial.

The PWM one requires a trigger input to fire it and this flashes the LED once. You then read the pulse from the Echo output.

The Serial version constantly takes readings, and outputs a distance value in mm in serial. The constant readings result in a flashing LED as soon as you apply power.

So – simple test when you apply power only:

No flashes – PWM version

Flashes – Serial version

The PWM version is well-documented, and easy to interface with on Arduino using the NewPing library but the Serial version is not. There is no way of telling from the markings on the board as these show the pin assignments for both versions.

For specification, look for the DYP-ME007TX which shows:

  • Supply voltage 5 v
  • Global Current Consumption 15 mA
  • Ultrasonic Frequency 40k Hz
  • Maximal Range 400 cm
  • Minimal Range 3 cm
  • Resolution 1 cm
  • Baud rate 9600 n,8,1
  • Outline Dimension 43x20x15 mm

However, our testing shows with the automotive sensor the minimum distance is 30cm.

Also useful is the spec of the output which is four 8-bit bytes:

  1. 0xFF: frame start marker byte.
  2. H_DATA: distance data of high eight.
  3. L_DATA: distance data of low 8 bits.
  4. Checksum byte: Value should equal 0xFF + H_DATA + L_DATA  (only lowest 8 bits)

Freedomotic logging for development and debugging Part 2

Ok, so now we have all our log messages coded in, with appropriate log levels like warn, info, debug. How do we control where they are sent, and how much we want to see?

Freedomotic  uses log4j to handle its logging output and the config file is at framework/freedomotic-core/src/main/resources/log4j.properties

The default at the moment is to log to the console but I want to log some to the console, and some to syslog. While I am developing, the console should show me important errors from all parts of the application and the output to syslog should show me the most granular output of the module I am working on, but also what was sent to the console. This allows me to see any important errors to do with my interactions with other parts of the application straight away on the console where I started the application, but also to see them in-line with my more detailed errors/debugging log via syslog.

Here is my log4j config:

# root logger
log4j.rootLogger=WARN, sysout, SYSLOG

# Output to console
log4j.appender.sysout=org.apache.log4j.ConsoleAppender
log4j.appender.sysout.threshold=WARN
log4j.appender.sysout.layout=org.apache.log4j.PatternLayout
log4j.appender.sysout.layout.ConversionPattern=%-5p <%t> [%C{1}]: %m%n

# Output to Syslog
log4j.appender.SYSLOG=org.apache.log4j.net.SyslogAppender
log4j.appender.SYSLOG.threshold=DEBUG
log4j.appender.SYSLOG.syslogHost=localhost
log4j.appender.SYSLOG.facility=local1
log4j.appender.SYSLOG.facilityPrinting=false
log4j.appender.SYSLOG.layout=org.apache.log4j.PatternLayout
log4j.appender.SYSLOG.layout.conversionPattern=%p <%t> [%C]: %m%n

# Detailed logging of my plugin
log4j.logger.com.freedomotic.plugins.devices.emoncms=DEBUG, SYSLOG
log4j.additivity.com.freedomotic.plugins.devices.emoncms=false
  • Root logger defines all the places I want to log to, and what starting level to send there. I have it set to WARN which means sysout and SYSLOG will get all messages of levels Warning or Error (since I am not expecting levels Critical, Alert or Emergency from my application – they are for the operating system).
  • The Console Appender is defined with a maximum level of WARN. This means that if I were to alter the root logger to DEBUG, I would still only get WARN and worse to it.
  • The Syslog Appender is defines with a maximum level of DEBUG, which means any log entry can potentially get there.
  • I am sending to the syslog facility ‘local1’ on localhost which I have configured in my syslog config to go to its own file (for tidyness).
  • My conversionPattern of ‘%p <%t> [%C]: %m%n’ is slightly different to what I have seen everywhere else on the internet (clue – it has a colon) and is specifically to stop a formatting error which messes up some entries when syslogging on my Mac. (I was getting spurious ‘Unknown’ and some truncation.)
  • The ‘log4j.additivity.com.freedomotic.emoncms=false’ line basically means don’t double-up messages – only add them if they aren’t already there.

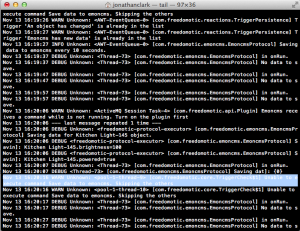

So, now I can debug by tailing my log, or better still I can deal with more awkward problems with my favourite log tool, Splunk:

Splunk log analysis

Freedomotic logging for development and debugging

Debug logOut of the box, Freedomotic logging output currently goes to the console. When you start the application, you see a whole load of messages streaming past you on the screen – very messy.

For me, the logging output should go to a file or what I mean really is that it should be sent to syslog. Ultimately, this is the best way to log applications because putting it into a system designed just for logging means you get access to all the things build specifically for dealing with logging. That probably makes no sense, but I will try to explain by way of my setup.

But firstly, lets look at how the logging happens in Freedomotic. Here is an example of some code from my Resol DL2 plugin:

 LOG.info("Loading Resol DL2 devices..");

..and its easy to see this creates the output of my informative text to the log. Actually I am telling the plugin something else – I have set the log level of ‘info’ which is important too. When you write to the log, you always specify what level you want. Here are the log levels, and Apple’s suggested usage:

  • Emergency (level 0) – The highest priority, usually reserved for catastrophic failures and reboot notices.
  • Alert (level 1) – A serious failure in a key system.
  • Critical (level 2) – A failure in a key system.
  • Error (level 3) – Something has failed.
  • Warning (level 4) Something is amiss and might fail if not corrected.
  • Notice (level 5) – Things of moderate interest to the user or administrator.
  • Info (level 6) – The lowest priority that you would normally log, and purely informational in nature.
  • Debug (level 7) – The lowest priority, and normally not logged except for messages from the kernel.

So, in my case the message is ‘purely informational in nature’ – which it is. But why would I want to log this information? Won’t I be filling the log with pointless chatter?

Now, here is the good bit with proper logging inside an application. I can code in whatever log information at whatever level and then at runtime I can decide what logs I want output from the application.  This means I can put debugging log entries in the code and have these enabled for debugging, but turned off when I am not interested in seeing them.

Next lets see how how this is done..
